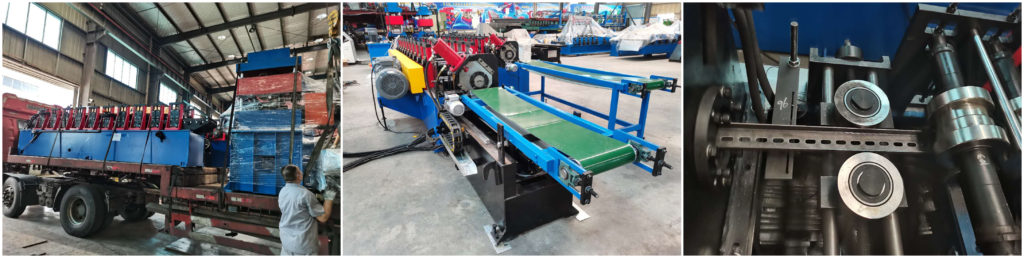

Cable Tray Roll Forming Machine delivery to Chinese local customer
A cable tray line delivered to a Chinese customer, configured to run inline with an automatic robot welding system.
- Delivery July 2020
- Profile Cable tray
- Integration Inline with an automatic robot welding system
Project background
What this line was built for
Recorded at the time of the order. For full machine specifications, see the model page linked below.
Ready cable tray roll forming machine delivery to our Chinese local customer on 1st, July, 2020. This cable tray line will match together with auto robot welding system, which is top one technology in the world now.
Machine in this project
The line used for this order
Specifications, options and tooling scope for this machine family — including the configuration this customer ordered.
How a project runs
The same four stages, every order
-
01
Profile and coil review
We start from your section drawing and coil specification — developed width, thickness range, material grade — and confirm line speed, cutting method and automation level before quoting.
-
02
Factory test run
Every line is assembled and run on production material in our Wuxi workshop. Cut length, section tolerance and line speed are checked against the order, and the run is recorded for the customer.
-
03
Export packing
Modules are separated, protected and packed in wooden crates; the hydraulic station and control cabinet travel separately. We prepare the packing list and documentation set for your forwarder.
-
04
Installation and training
Our engineers can travel to site to assemble and align the line, run trial coils and train operators. Afterwards we stay available for remote support and spare parts.
